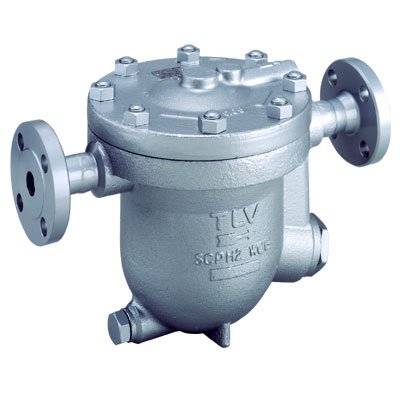

TLV - Free Float Steam Trap Models: JH7RL-X, JH7RL-B and JH7RM-B
Key Features:-
1) Continuous Condensate Discharge: The self-modulating free float responds instantly to process load variations, ensuring smooth, continuous, and low-velocity condensate removal.
2) Steam-Tight Seal: Combining a precision-ground float, a constant water seal, and a three-point seating design, it guarantees a complete steam-tight seal even under zero-load conditions.
3) Automatic Air Venting Options:
- JH7RL-X: Equipped with a thermostatic capsule (X-element) featuring a "fail open" design that automatically vents air at close-to-steam temperatures.
- JH7RL-B / JH7RM-B: Utilizes a thermostatic bimetal air vent valve for rapid air venting during startup, ensuring quick system heat-up.
4) Extended Operation: An internal built-in screen with a large surface area protects the mechanism from dirt and scale, guaranteeing trouble-free performance.
5) Low Maintenance Cost: Easy, inline access to all internal components simplifies cleaning and drastically reduces downtime and maintenance costs.
Product Specifications:-
| Features | Model: JH7RL-X | Model: JH7RL-B | Model: JH7RM-B |
| Air Vent Type | X-element (6 °C subcooling) | Bimetal (vents up to ~100 °C) | Bimetal (vents up to ~100 °C) |
| Connection Types | Screwed, Socket Welded, Flanged | Screwed, Socket Welded, Flanged | Socket Welded, Flanged |
| Size Options (mm) | 25, 40 (Flanged: 20, 25, 40, 50) | 20, 25, 40, 50 | 20, 25, 40, 50 |
| Max. Operating Pressure (PMO) | 0.2 to 3.2 MPaG | 0.2 - 4.6 MPaG | 6.5 MPaG |
| Max. Operating Temperature (TMO) | 240 °C | 425 °C | 425 °C |
| Body Material | Cast Steel (ASTM A216 Gr.WCB) | Cast Steel (ASTM A216 Gr.WCB) | Cast Steel (ASTM A216 Gr.WCB) |
