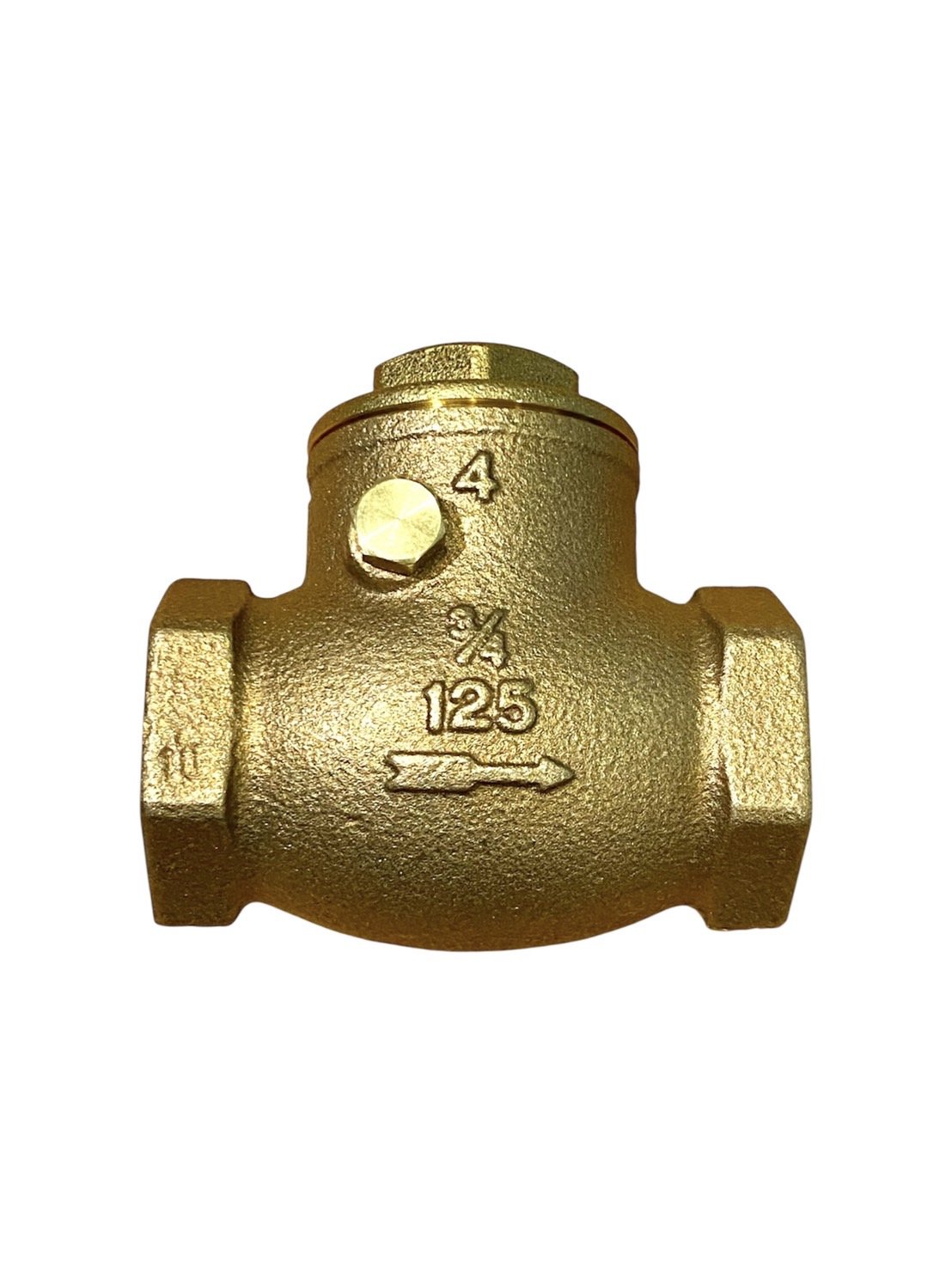

TOYO - Swing Check Valve Model 234 (T type)
Made of bronze and brass, suitable for general piping systems but not for flammable or toxic gases. It comes in sizes from 3/8 inch to 3 inch.
Product Details:-
- Valve Type: Swing Check Valve
- Main Materials:
Body → Cast Bronze
Cap → Forged Brass
Disc → Forged Brass
Hinge Pin & Plug → Brass Rod
- Connection: Threaded, JIS 80203 standard
- Cap: Screwed cap, screwed ends
Pressure and wall thickness standards: Manufacturer’s standard
Dimensions:-
Available from 3/8 inch to 3 inch. Key dimensions such as height (H), length (L), and wrench size (S1) are specified in the attached table, for example:
· 1/2 inch → H = 39 mm, L = 60 mm, S1 = 28 mm
· 2 inch → H = 79 mm, L = 122 mm, S1 = 72 mm
· 3 inch → H = 102 mm, L = 165 mm, S1 = 102 mm
